Rotary rake Pronar ZKP460T

Rotary rake Pronar ZKP460T – features:

REGULATION OF DRAWBAR CYLINDER

Drawbar cylinder is equipped with crank regulation, which ensures proper height adjustment and inclination of a carousel. Aggregation to a tractor is possible with parallelogram drawbar which keeps hitch in constant vertical position.

ARTICULATED DRAWBAR

Rake is connected to the tractor by the drawbar. This design ensures that rake in the work setting and the transport setting is parallel to the ground.

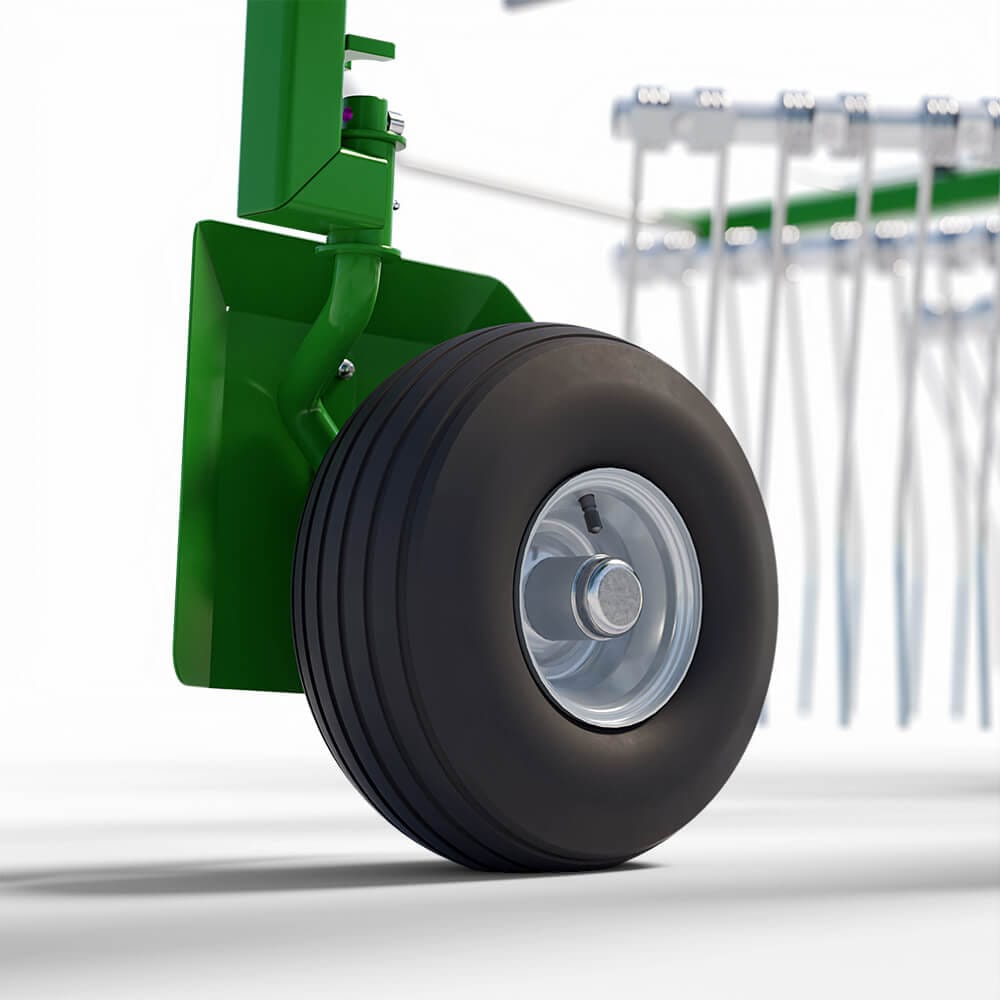

WHEEL SUPPORT ( optional)

Ensures accurate raking and ground following ability.

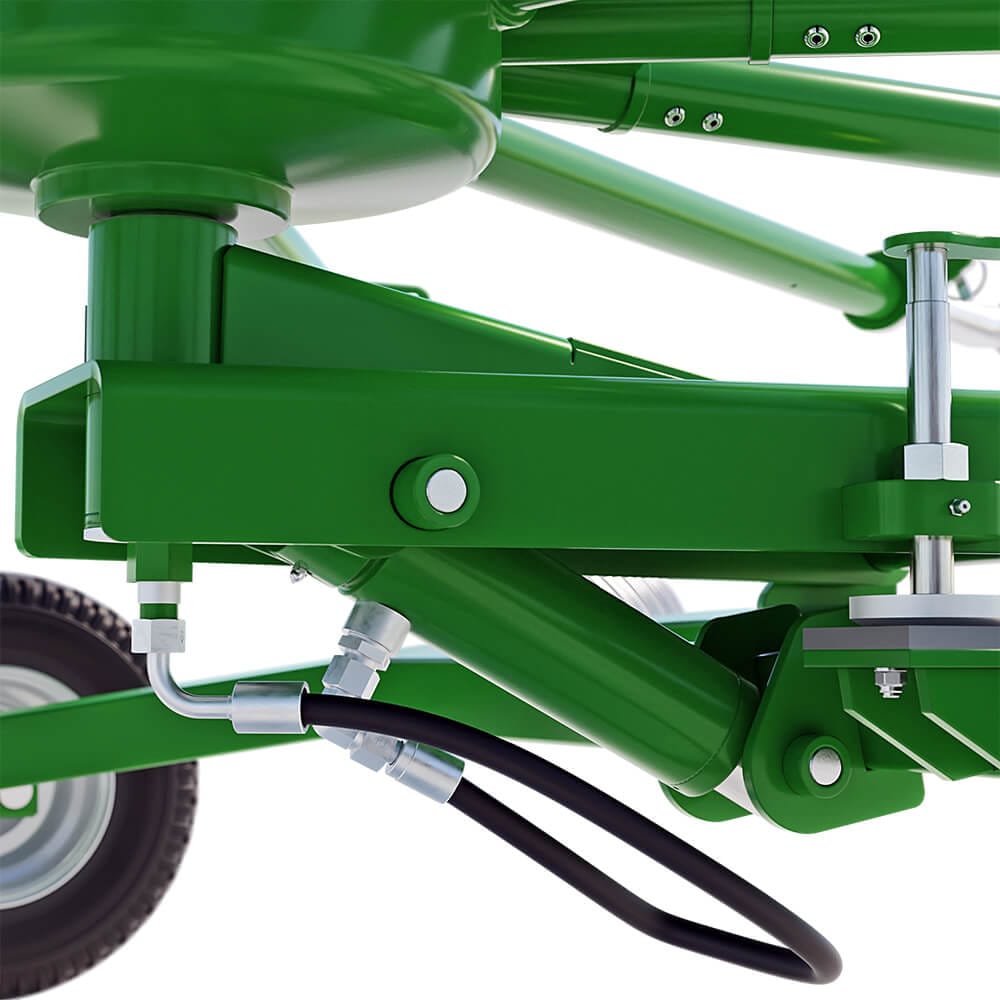

HYDRAULIC HEIGHT REGULATION OF CAROUSEL

Two cylinders mounted on frame and on drawbar rake, provide easy change from transport setting to working setting and efficient maneuvering over swath. Lifting and lowering of the machine to adjusted depth is possible due to usage of hydraulic system. Basic working depth is adjusted by a bolt on the chassis rake. In order to ensure always optimal alignment tines to the ground, there is a possibility of making additional inclination of the rotor relative to the chassis.

4 WHEEL DRIVING SYSTEM

Positioning of wheels in rakes is designed to work maximally close to the tines. It is ideal solution which will guarantee perfect ground following ability and will secure forage against soil pollution.

HERMETIC AND LUBRICATED GEAR

Proper raking is provided by 12-arm gearbox and its special design. Thanks to it the work of rakes, even with heavy usage is continuous and will not create problems for farmer. The gearbox is characterized by durability, reliability, sealing and lubrication system: oil bath with a tangentially-set rotor arms. This ensures maximum safety of gear wheels and usage is reduced to minimum.

12 EASY TO DISMOUNT WORKING ARMS.

Arms of the carousel can be dismounted in easy and fast way, which reduce width of rake, for example when it is transported between fields. Usage of 12 arms on carousel, creates possibility to swatch with higher speed, but with retain same speed of carousel rotation.

EASY TO ASSEMBLE FORMING SHIELD

Construction of forming shield is easy to lifting and lowering. There is no need for additional force usage.

4 SPRING TINES ON SINGLE ARM

Raking spring tines are made of very durable 9,5 mm wire steel, which correspond with long lasting usage. Optimal tines fit to the ground, ensure that swat is raked evenly. It is damage free and and protects the turf.
