Rotary rake PRONAR ZKP800
Pronar ZKP 800 is a double rotor rotary rakes with hydraulic regulation of working width from 7 m 8 m and manual lock of required width. Swath width can be set from 0.9 to 1,9 m.

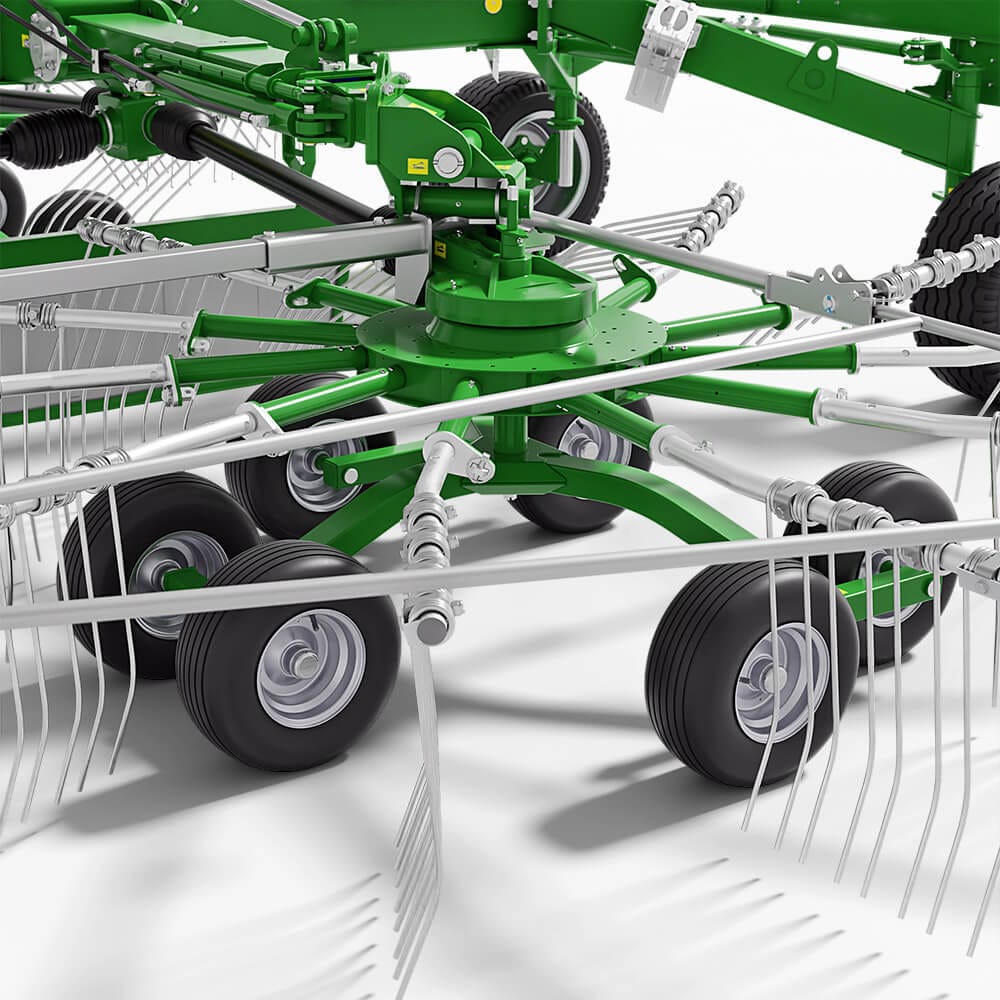

Pronar ZKP 800 is eqiuipped with two rotors with eleven working arms. Each arm ends with four double raking fingers. . Using it is very simple, while ensuring the effectiveness. Turned linkage enables perfect steering of the rake. Lower links enable additional ground following behind the tractor. Rear Turing Wheel of the drwbar improve menoeuvrability.

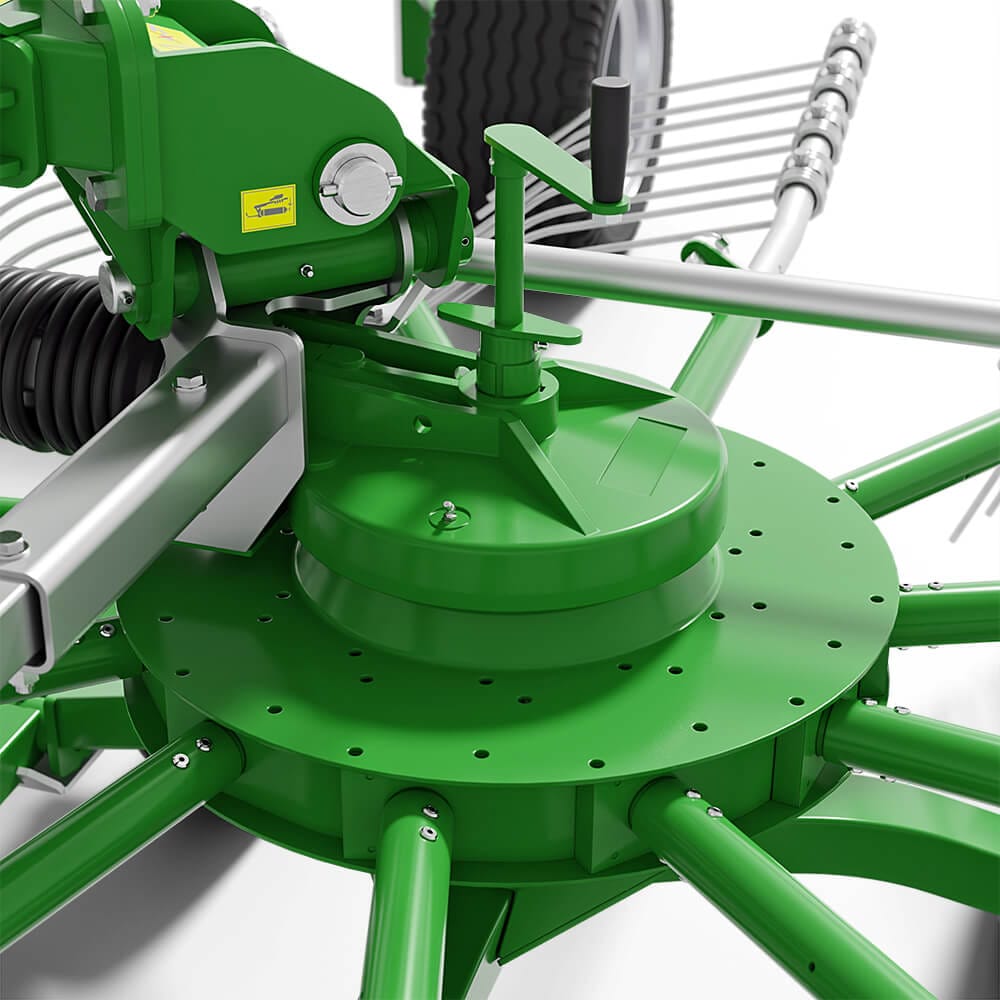

The rake offers also manual adjustment of raking height and hydraulic synchronized raising and lowering rotors.
Can be used for operations on tractors I and II cat. ZKP 800 power requirement amounts to 59 kW (80 HP), and it weights 1940 kg. The gearbox is lubricated with grease.
1. COMPATIBLE
For operations on tractors I and II cat.
2. EFFICIENT
Despite small size – efficiency for 7ha/h.
3. EASY TO USE
Operator can easily set needed parameters.
4. COST-EFFECTIVENESS
In the production process to use the most modern technologies and components.
| Total length in working/transport position | 5400/5400 | mm |
| Width in working/transport position | mm | |
| minimum | 7500/2800 | |
| maximum | 8500/2800 | |
| Height in working position | 1450 | mm |
| Height in transport position | ||
| rakes off | 3550 | mm |
| rakes on | 4200 | mm |
| Working width | 7000-8000 | mm |
| Swath width | 900-1900 | mm |
| Number of rotors | 2 | pcs. |
| Number of working arms | 11 | pcs. |
| Number of raking tines on one arm | 4 | pcs. |
| Suspension system | Cat. I and II in acc. with ISO 730-1 | |
| Turning wheel of the drawbar | Pneumatic on tandem axle, front axle steering | |
| Drive system for the rotors | tandem type with 6 wheels | |
| Type of rotary gear | wet (oil bath) | |
| Overload protection WPT | Single direction and overload protectecing clutch 900 Nm | |
| Power requirement | 59/80 | kW/HP |
| PTO speed WOM | 540 | rpm |
| Weight | 1940 | kg |
| Recommended moving speed | 10 | km/h |
| Tyres | ||
| drive system 400 kPa | 10.0/75-15.3 | – |
| rotors drive system 160 kPa | 16×6.5-8 (6PR) | – |
| Voltage stability of electric power system | 12 | V |
| Required hydraulic outputs | double-sided single section + double-sided single section in floating position | |
| Raking width adjustment | hydraulic and synchronized system | |
| Raising and lowering of rotors | hydraulic and synchronized system | |
| Additional equipment: | ||
| Rubber wheels 340/55-16 | ||
