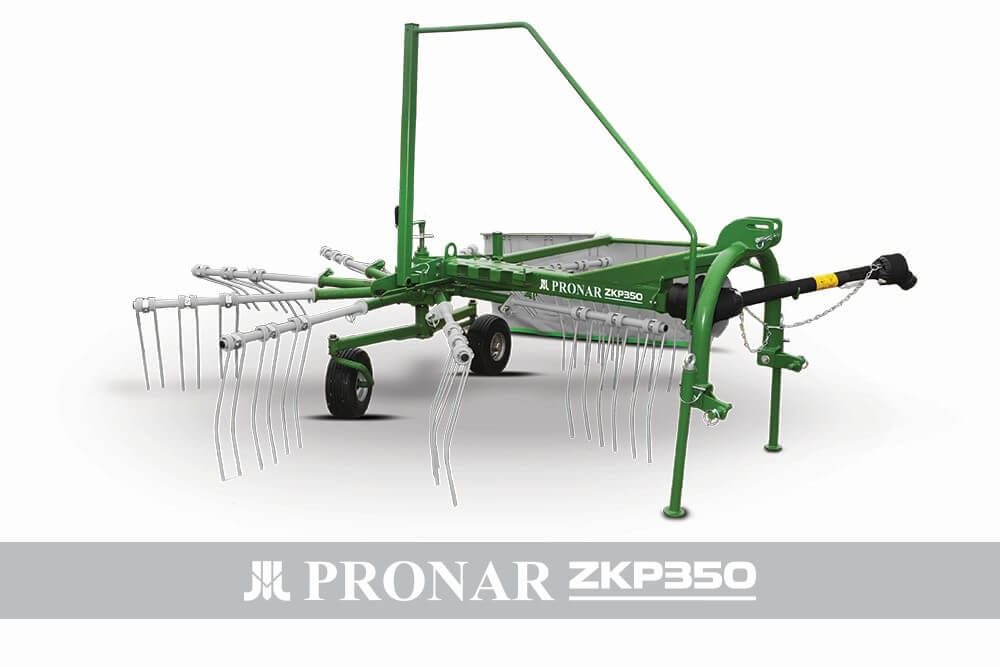

ZKP 350
ZKP 350 is a single rotor rotary rake with working width of 3,5 m, equipped in nine working arms. Each arm ends with three double raking fingers.
Using it is very simple, while ensuring the effectiveness. For transport position working arms are removable and positioned on the rakes frame. The axle system is equipped in two wheels with pneumatic tires, for operations on tractors I and II cat. ZKP 350 power requirement amounts to 18kW (25 HP), and it weights 315 kg. The rotary rakes is equipeed with rigid suspension, oil gearbox.
1. COMPATIBLE
For operations on tractors I and II cat.
2. EFFICIENT
Despite small size – efficiency for 3,5ha/h.
3. EASY TO USE
Operator can easily set needed parameters.
4. COST-EFFECTIVENESS
In the production process to use the most modern technologies and components.
| Length in working/transport position | 3250/2430 | mm |
| Working width | mm | |
| minimum | 3405 | |
| maximum | 3905 | |
| Transport position width | 1110 | mm |
| Height in working/transport position | 1120/1985 | mm |
| working width | 3500 | mm |
| Number of raking tines on one arm | 9 | pcs. |
| Number of raking tines on one arm | 3 | pcs. |
| Suspension | fixed | – |
| Linkage system | Cat. I and II acc. ISO 730-1 | – |
| Traction system | two wheels | – |
| Type of central gear | wet (oil bath) | – |
| The overload protection | clutch 600 Nm | – |
| Power requirement | 18/25 | kW/HP |
| PTO speed | 540 | rpm |
| Weight | 315 | kg |
| Recommended moving speed | 10 | km/h |
| Working efficiency | 3,5 | ha/h |
| Tyres | 15×6.0-6 | – |
| Pressure in tyres | 200 | kPa |
| PTO shaft | Standard | |
| Additional equipment: | ||
| Tandem chassis, active suspension | ||
