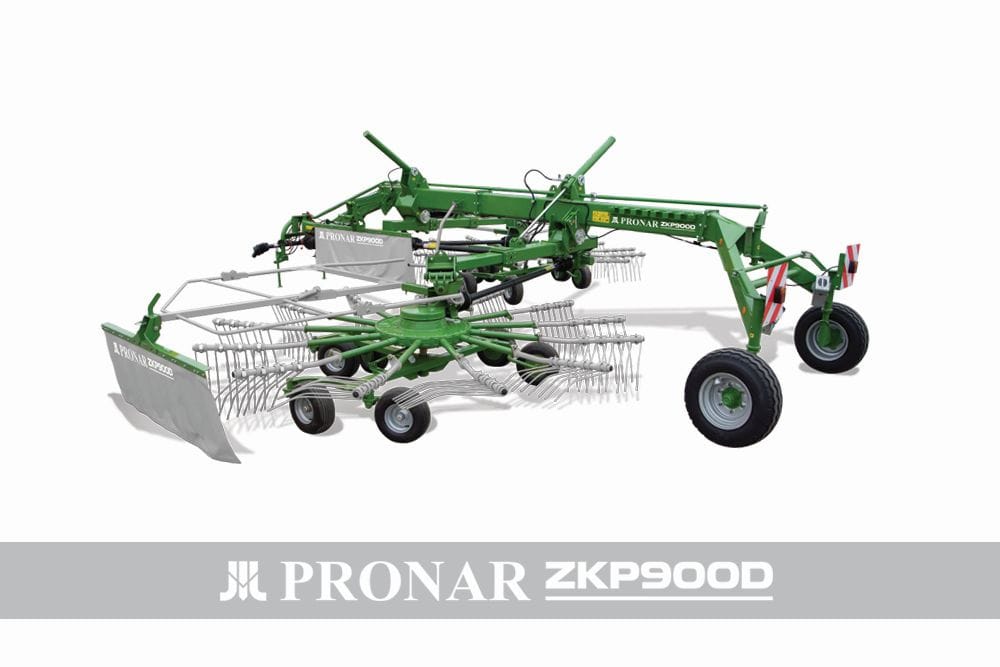

Double-rotor rake ZKP900D
Double-rotor rake ZKP900D – was created to meet needs of farms with large grassland areas. Hydraulic regulation of working width varies from 7.1m to 9m, which results in high performance during raking. An important distinguish feature of machine is possibility to make one or two rollers ready to be picked up by baler or self-loading wagon. To not deform already made rollers, there is a possibility to lift the elements of the rake slightly above them without disconnecting rotor drivers, which makes work quicker.

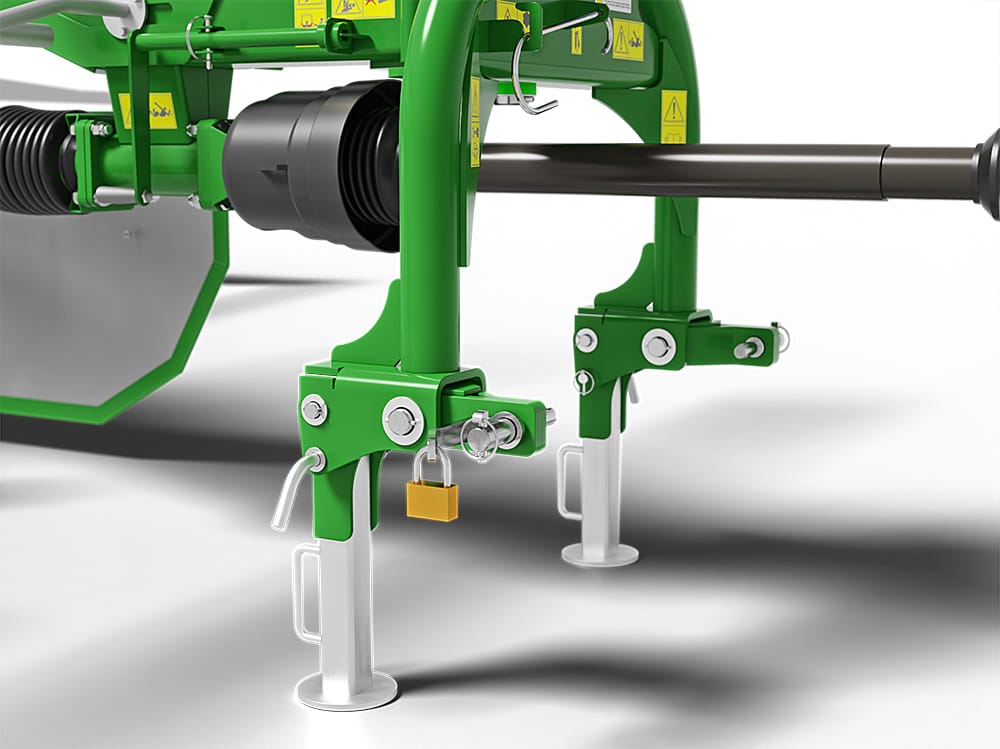

ZKP900D can be used with tractors with a power of not less than 80KM (59kW) and not lighter than 2.5t. Connection with a tractor is made through three-point suspension system I or II cat. The width after folding doesn’t exceed 3m.
Raking as required
Hydraulically extending telescopic arms allows to rake grass into one or two rollers with width from 0.6 to 1.9m
Smooth work on any ground
Adjustable raking depth helps to set the optimum raking on varying soil hardness.
Easy to maneuver in transport
Dedicated hydraulic system allows the rotors to be smoothly folded into its transport position. The steering system is designed to make maneuvering on narrow and winding roads easier.
| Technical specification of standard equipment | ||
| Total length in working/transport position | 8600/8600 | mm |
| Width in working position | ||
| minimum | 7150 | mm |
| maximum | 9050 | mm |
| Width in transport position | 2800 | mm |
| Height in working position | 2350 | mm |
| Height in transport position: | ||
| rakes off | 3950 | mm |
| rakes on | 4650 | mm |
| Number of raking swaths | 1 or 2 | pcs. |
| Working width | 7100-9000 | mm |
| Number of rotors | 2 | pcs. |
| Number of working arms | 13 | pcs. |
| Number of raking tines on one arm | 4 | pcs. |
| Suspension system | Cat. I and II in acc. with ISO 730-1 | |
| Turning wheel of the drawbar | 2 turning wheels | |

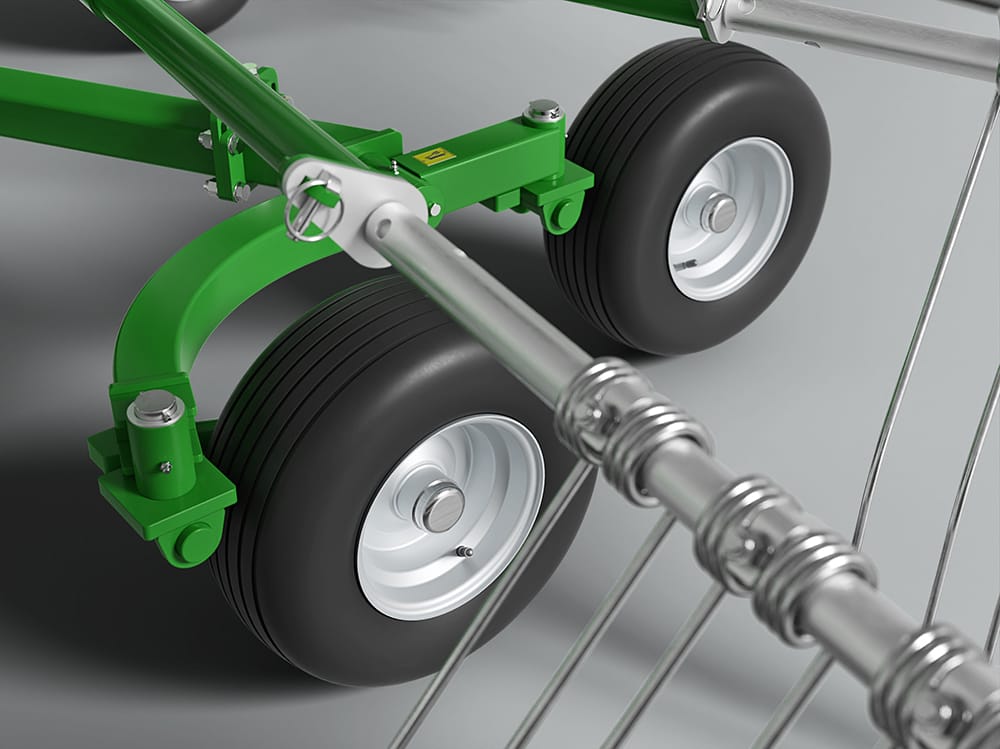

| Drive system for the rotors | tandem type with 6 wheels | |
| Type of rotary gear | dry (lubrication with grease) | |
| Overload protection WPT | Single direction and overload protecting clutch 900 Nm. | |
| Minimum power requirement | 59/80 | kW/HP |
| PTO speed | 540 | rpm |
| Empty weight | 2820 | kg |
| Recommended moving speed | 10 | km/h |
| Tyres: | ||
| drive system | 10.0/75-15.3 | |
| rotors drive system | 16×6.5-8 (6PR) | |
| Tyres air pressure | ||
| drive system: | 400kPa | |
| rotors drive system | 160kPa | |
| Raking width adjustment | hydraulic | |
| Required hydraulic outputs | One double-acting section and one double-acting section with floating position | |
| Raising and lowering of rotors | hydraulic and synchronized system | |
| Additional equipment: | ||
| Wheels 340/55-16 | ||
| Tine protection system | ||
| Tube for documents | ||
