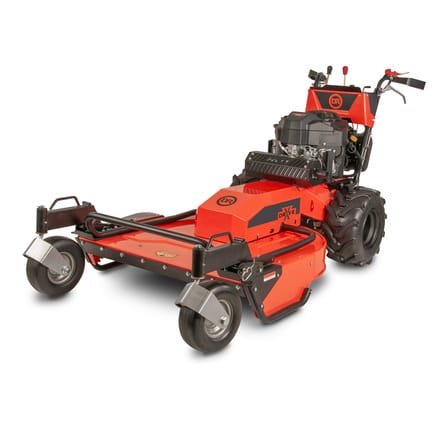

DR Field and Brush Mower (Commercial) XD36 (22 HP)
$7,839.99
XD36 (22 HP)
XD Commercial Series: 36” Cut & Kawasaki Engine
DR®’s XD Series Field & Brush Mowers are built to meet the demands of commercial users: frequent use, long runtimes, daily transport, and ease of maintenance.
The XD36 cuts an impressive 36” wide and features a proven Kawasaki FS651V engine that provides the power you need to mow all day long. Independent hydrostatic wheel drives and front castors ensure ease of handling without fatigue, built in hand guards protect the operator while mowing down tough brush, and trailering is fast and easy with integrated tie-down hooks.
Product Summary:
- 22 HP Kawasaki FS651V Engine, Electric Start
- Hydrostatic Drive: 2 independent wheel drives for fingertip control
- Variable speed drive, forward and reverse with zero-turn radius ability
- 36″ cutting deck
- Pivoting deck follows contours of ground
- Oil pump for superior performance on hills
- Handguards protect operator’s hands from brush and briars
- 11″ foldable front caster wheels
- See Features and Specs Tabs for more product details
Warranty Coverage
- Engine: 3 years residential; 3 years commercial
Machine: 2 years residential; 2 years commercial
Commercial Kawasaki Engine
22 HP 726cc FS651V engine, comes with 3-year Commercial-use engine warranty.
Independent Hydrostatic Wheel Drive
Provides zero-degree turning radius & effortless maneuverability. Variable speed forward & reverse
Independent Wheel Drive Levers
Solid cast aluminum design. Dual drive levers let you put power to each wheel with the touch of your fingers
36” Brush Deck
Fully welded, 12-gauge brush deck with reinforcing stability bar for added strength. Pivots +/-5° to follow contours of ground. Our optional Heavy duty brush blade is a great addition for extra tough, woody material and can be sharpened on both sides for 2X the blade life.
Side Discharge
Efficiently clears out mowed material preventing excess accumulation under the extra wide mowing deck.
On-Board Control Panel
All primary controls located in one location. Integrated maintenance meter for tracking service intervals.
11” Front Casters
Never flat folding caster wheels hold the weight of the 36″ deck for long mowing sessions and can be flipped back to tackle brush and tougher vegetation.
| Cutting | |
|---|---|
| Blade Tip Speed | 18,864 FPM |
| Cutting Capacity | 6’ Grass, 8’ Weeds, 3” Saplings |
| Cutting Height | 4.25″ |
| Cutting Width | 36″ |
| Discharge Location | Side Discharge |
| Dimensions | |
|---|---|
| Handlebar Height | 40.5″ |
| Height | 43″ |
| Length | 92″ |
| Shipping Weight | 647 lbs |
| Weight | 505 lbs |
| Width | 48″ |
| Shipping Dimensions | 49″W x 50″H x 78″L |
| Engine | |
|---|---|
| Air Filter | Dual-Element |
| Cooling Methods | Air Cooled |
| Displacement | 726cc |
| Engine Type | OHV |
| Ft Lbs Torque | 39.3 ft-lbs |
| Horsepower | 22 HP |
| Lubrication | Full Pressure Pump w/Oil Filter |
| Make | Kawasaki |
| Model | FS651V |
| Number Of Cylinders | 2 |
| Oil Capacity | 67.2oz |
| Oil Filter | Yes |
| Oil Type | SAE 30W HD |
| Starting Type | Electric |
| Fuel_System | |
|---|---|
| Fuel Capacity | 2 gallon with Fuel Pump |
| Inline Fuel Filter | Yes |
| General | |
|---|---|
| Accepts Attachments | No |
| Assembly | Install Brush Deck & Caster Wheels |
| Speed | Reverse: 0mph – 1.9mph | Forward: 0mph – 4.0mph |
| Transmission | Hydro Gear ZT1800 |
| Wheels_Tires | |
|---|---|
| Casters | Two 11″ foldable front caster wheels |
| Rear Tire Size | 18″ x 8.50″ |
| Tread | Directional Tread |
| Warranty | |
|---|---|
| Engine Warranty | 3 Year Residential, 3 Year Commercial |
| Machine Warranty | 2 Year Residential, 2 Year Commercial |
| Material | |
|---|---|
| Deck | 12GA w/7GA Reinforcements |
| Frame | 11GA w/7GA Reinforcements |
